Product Number: 7110500-18D

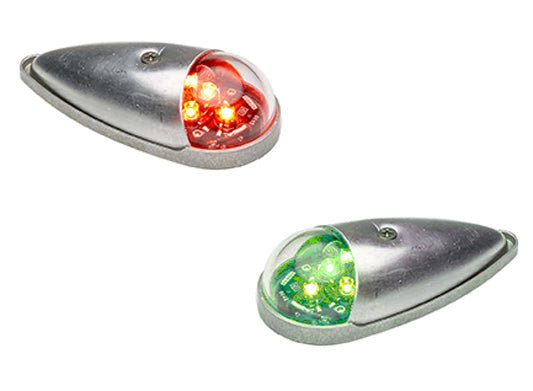

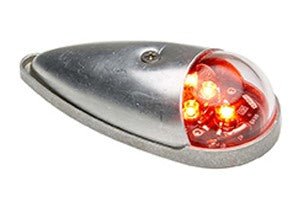

Whelen LED Fwd Position Light Assembly
71105 series are fully FAA TSO compliant Forward Position lights. LED's provide a significant reduction in electrical current draw over conventional light bulbs. Direct replacement for Whelen Model W1285 series (Version STC'd on Learjet Aircraft).
Approval Basis: FAA-TSO Approved.
Brand: Whelen Strobes / Lighting
LED Navigation Light Power Consumption: 0.25 Amps @ 14V or 28V
•LED Colors: Aviation Red, Aviation Green
•Weight: 0.20 Lbs (91mm) 14V, 0.25 Lbs (113mm) 28V
•Exposed Height: 2.70 (69mm)
•Lens: Clear Polycarbonate
OEM Part Number:
7110501 14V Green
7110502 14V Red
7110503 28V Green
7110504 28V Red
Eligible Aircraft: All models with a 6" nav pad on the wing tips.
