Product Number: 005-OR500V-18D

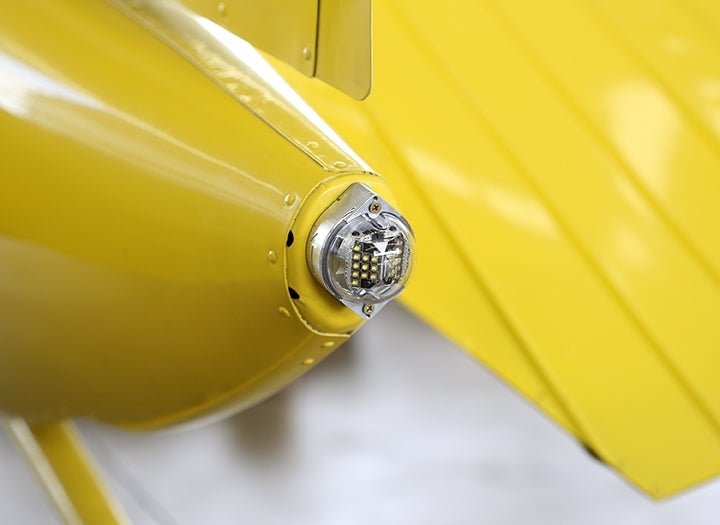

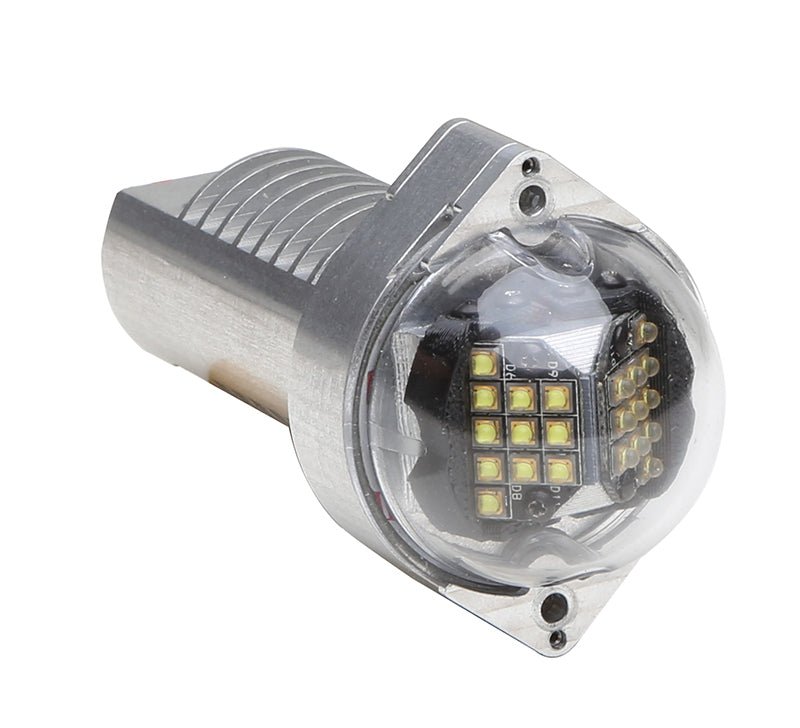

Whelen Combination LED Tail Strobe / Position Light
Whelen Engineering is proud to introduce the NEW ORION500 Series of FAA/TSO approved LED aviation lighting. Incorporating the latest state-of-the-art LED Technology available in an all-inclusive package, the ORION500 series eliminates the need for external flasher boxes. Flush mountable for a wide variety of applications with minimal integration and easily retrofittable to the Whelen legacy strobe products. The ORION500 series is quite simply the brightest form of LED Anti-collision and Position lighting available.
FAA-PMA Approved
Approval Basis: FAA TSO-C96a Class II / TSO-C30c Type III
Brand: Whelen Strobes / Lighting
Replaces: SDI / Hoskins 701557-2, Whelen A500 Series
Specifications:
-
Weight 0.28 lbs.
Current Draw 12V / 28V 0.20 / 0.10 Amp (Position) 0.38 / 0.19 Amp (Anti-Collision)
Lenses clear hard coated Polycarbonate
OEM Part Number:
OR5001V 12VDC
OR5002V 24VDC
Eligible Aircraft: Virtually all models
