Product Number: 20-GF0723200-18D

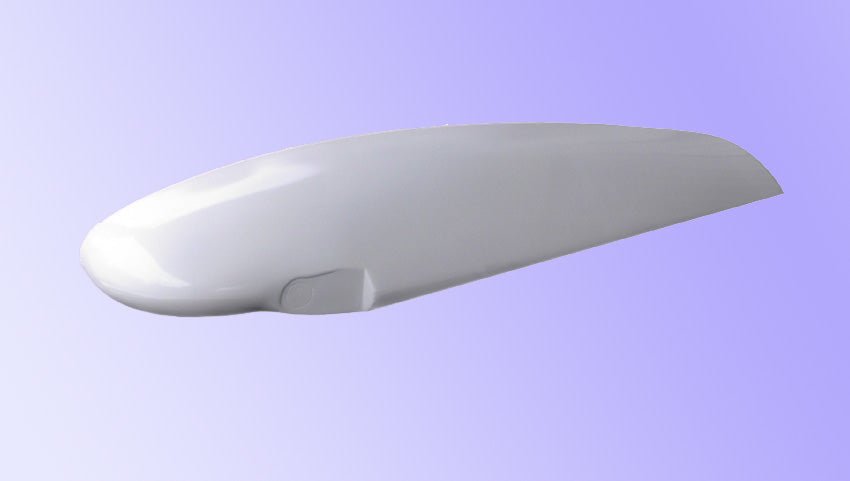

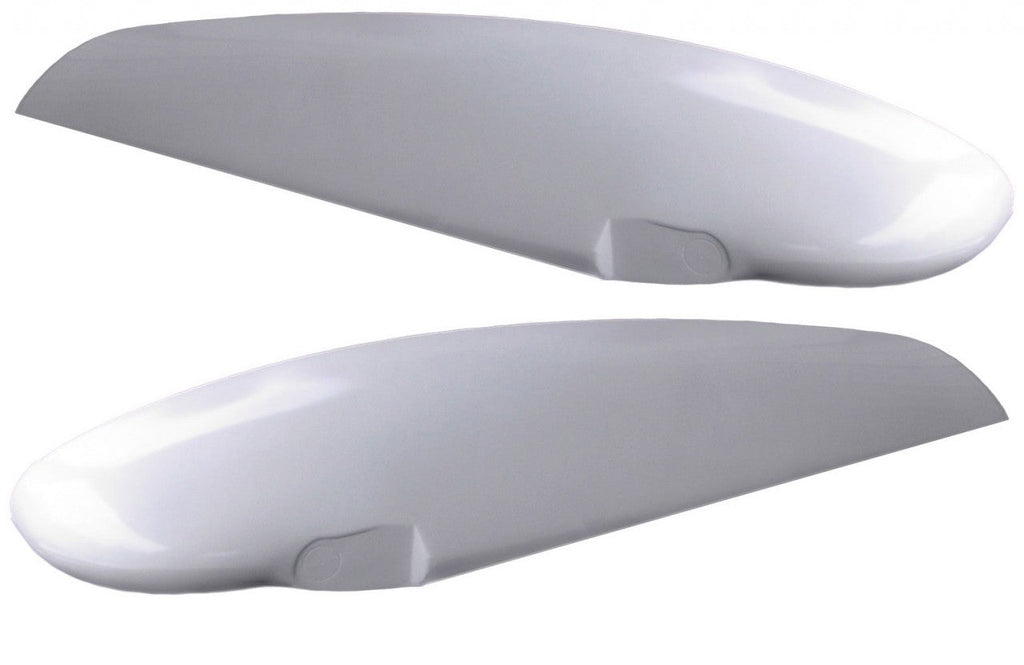

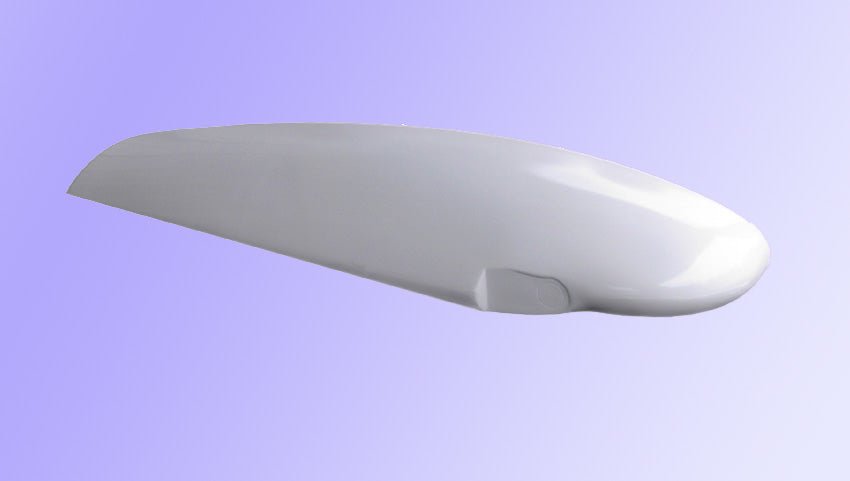

Cessna Conical Wing Tips - drooped slightly at the trailing edge
Reproductions of the OEM wing tips
FAA-PMA Approved
Fiberglass
These tips fit the single engine Cessna's with the high lift leading edge wing.
Cessna: 1974 and newer
1973 & on: 172M, 172N, 172P, 172Q, 172RG. 1977 & on: R172K (Hawk XP) S/N R1722000 thru R1723454. 1980 & on: 172RG S/N 172RG0001 thru 172RG1191. 1973 & on 180J, 180K. S/N 18052285 thru 18053203. 1972 & on: 182P, 182Q, 182R, T182 S/N 18260826 thru 18268615. 1978 & on: R182, TR182 S/N R18200001 thru R18202041. 1973 & on: A185F 18502091 thru 18504448. 1972 & on: U206F, TU206F, U206G, TU206G, S/N U20601701 thru U20607020.
Lighting, Light Retainers, Hardware, and aluminum edge strips are transferred from your original parts, they are not included.
Replaces OEM part numbers: 0723200-6, 0723200-32, 0723200-5, 0723200-33
Aluminum edge strip OEM part numbers:
0423008-4 LH upper, RH lower, 0423008-5 RH upper, LH lower, 0523565-21 LH Upper, RH lower, 0523565-22 RH upper, LH lower
Conical Light retainer flanges not provided.
Use Cessna part #073201-1 & -2 or -5 &-6 for strobes.
