Product Number: 34-01-23RFS-80A
1962 and 1963 LOWER RIGHT

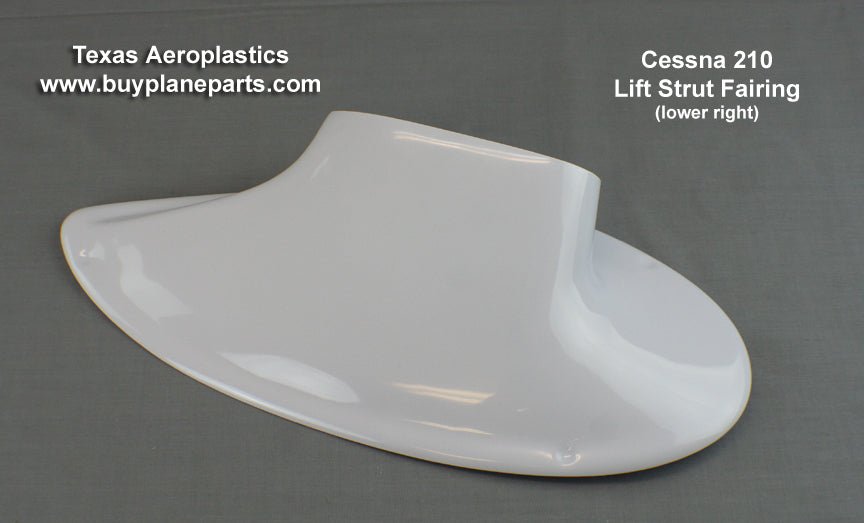

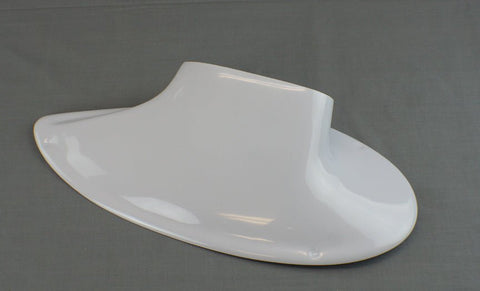

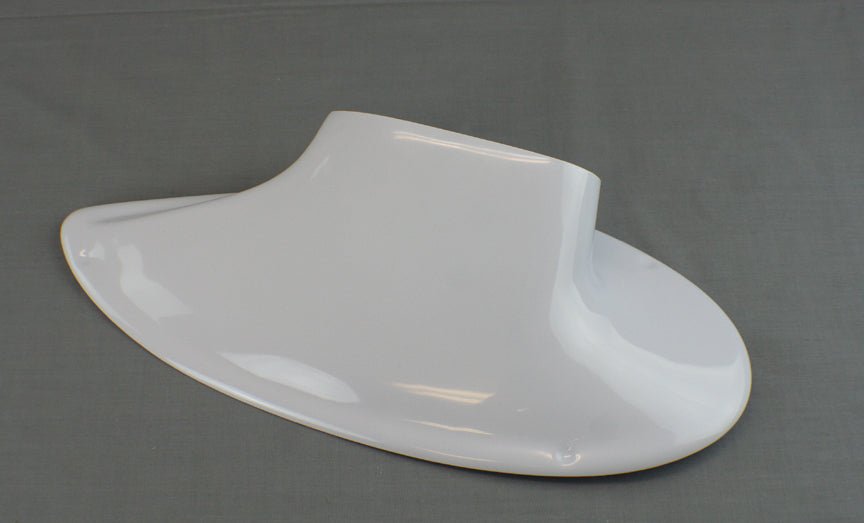

Cessna 210 (lower right) Strut Fairing
Right Fuselage to Strut Intersection, Co-Pilot side
FAA PMA Approved
TAP PMA Part Numbers: 34-01-23RFS
Replaces OEM part: 1227401-2
Eligible aircraft: Cessna 210, 210A, B, C, D, E (1960 thru 1965) S/N 210-57001 thru 210-57840
Excludes: Cessna 210, 1966 models. The 1966 210 and 1966 Turbo 210 use the larger chord length strut used on some Cessna 205 and 206.
This product also fits, but is not FAA approved in our current PMA supplement.
Please be advised that if we indicate a product will fit an aircraft but is not covered in our current FAA PMA supplement. The indicated product can only be legally installed (under FAA Regulations) on an aircraft in the experimental category or with an FAA 337 field approval on a type certified aircraft. These purchases should only be done with the FAA legal installation intent.
Wing Strut Fairing (Lower Left) Foot print size: 15 1/2" x 6 1/2" Strut chord, length of opening: 5 1/2"
Texas Aeroplastics only makes two of the three style lower fairings in ABS. The largest lower fairing, that we do not make in ABS can be ordered in fiberglass.
A Manufacturer's "Certificate of Conformance" log book label is available to purchase with this product.
