Product Number: 34-01-05RWS-80A
1960 thru 1965 UPPER RIGHT

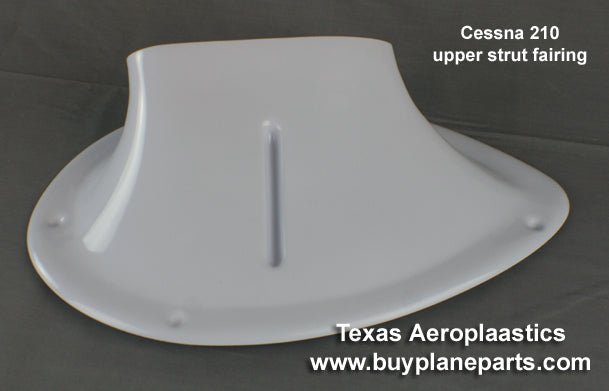

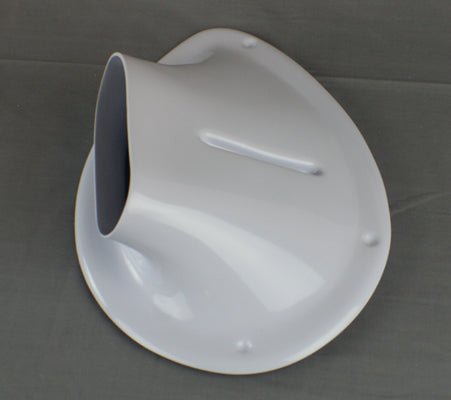

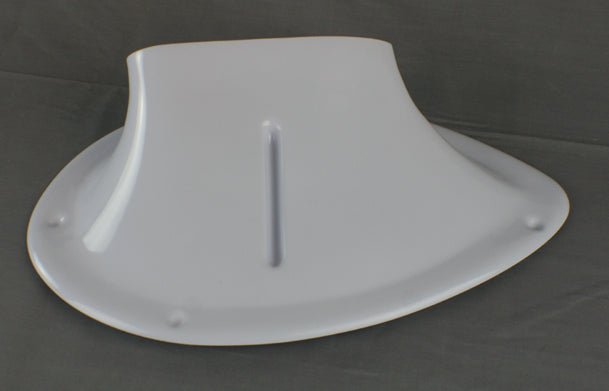

Cessna 210 (upper right) Strut Fairing
Wing Strut to Wing intersection, Co-Pilot side
FAA PMA Approved
TAP PMA Part Numbers: 34-01-05RWS
Replaces OEM P/N: 1227002-4
Eligible aircraft: Cessna 210, 210A, B, C, D, E (1960 thru 1965)
S/N 210 57001 thru 210 58715
Excludes: Cessna 210, 1966 models
The 1966 210 and 1966 Turbo 210 use the larger chord length strut used on Cessna 205 and 206
1963 -71: 206, P206, P206A, P206B, P206C, P206D, P206E, TP206A,TP206B, TP206C, TP206D, TP206E, U206, U206A, U206B, U206C, U206D, U206E, U206F, TU206A, TU206B, TU206C, TU206D, TU206E, TU206F, 205, 205A 1964 - 65
This product also fits, but is not FAA approved in our current PMA supplement.
Please be advised that if we indicate a product will fit an aircraft but is not covered in our current FAA PMA supplement. The indicated product can only be legally installed (under FAA Regulations) on an aircraft in the experimental category or with an FAA 337 field approval on a type certified aircraft. These purchases should only be done with the FAA legal installation intent.
It is better to have the lower fairings off the airplane and turn them over to measure the length and width of the foot-print to be accurate.
A Manufacturer's "Certificate of Conformance" log book label is available to purchase with this product.
